PU Cement Cartridge Filter Top installation baghouse cement pleated air filter description:
Product Features For PU Cement Cartridge Filter :
1) Imported PTFE coated polyester filter media, small pore size, high filtration precision.
2) Smooth filter media surface,not sticky.
3) Excellent chemical resistance.
4) Electro-galvanized / stainless steel cover, central skeleton.
5) Professional sealing obturator elastic neoprene.
6) Operating temperature ≤ 135 ° C.
Application field
High dust concentration plants such as cement, power factory, casting.
Details of Cement Pleated Air Filter
| description | Cement Pleated Air Filter |
| material | polyester |
| sample | available |
| pass | ISO/TS 16949:2009 |
| service | OEM/ODM |
| min quantity | 50 pieces |
| business type | manufacturer, factory |
| delivery time | 7-20 days after we received your prepay |
Application field
High dust concentration plants such as cement, power factory, casting.
| Model | Cover Material | Tube Sheet H.D (mm) | Top Cover O.D (mm) | Bottom Cover O.D (mm) | Filtration Surface/1m | Filtration Surface/2m |
| AR 127 | Galvanized metal | φ127 | φ146 | φ114 | 1.1m2 | 2.3m2 |
| AR 133 | Galvanized metal | φ133 | φ152 | φ121 | 1.5m2 | 3.0m2 |
| AR 159 | Galvanized metal | φ159 | φ178 | φ144 | 2.1m2 | 4.1m2 |
| AR 162 | Galvanized metal | φ162 | φ178 | φ146 | 2.3m2 | 4.6m2 |
Performance Description

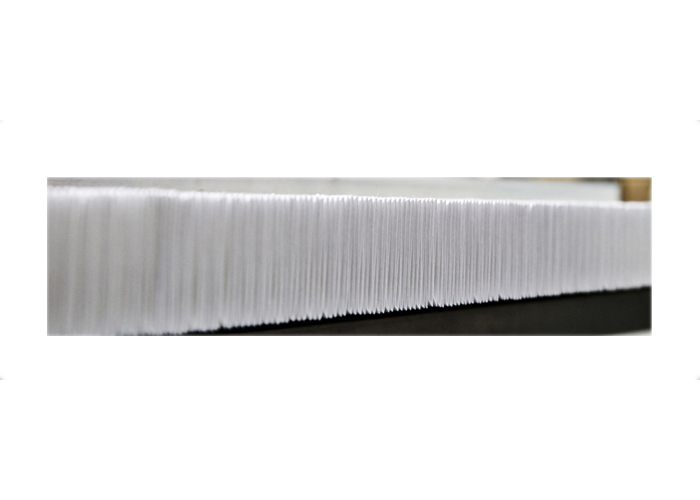

- Narrow Pleat width, easy for self-clean
- High filtration efficiency
- 3 times filtration area than filter bag
-
Top open, bottom close
-
Rubber seal (can choose on the one side of the end cap)
-
Various ways of flange installation
-
Galvanized stainless metal configuration
Selection of Material
- Polyester (white, black for choose)
- Polyester + Flame Retardant
- Polyester + oil, water resistant
- Polyester + Antistatic
- Polyester + PTFE membrane
Performance Description
- Narrow Pleat width, easy for self-clean
- High filtration efficiency
- 3 times filtration area than filter bag
-
Top open, bottom close
-
Rubber seal (can choose on the one side of the end cap)
-
Various ways of flange installation
-
Galvanized stainless metal configuration

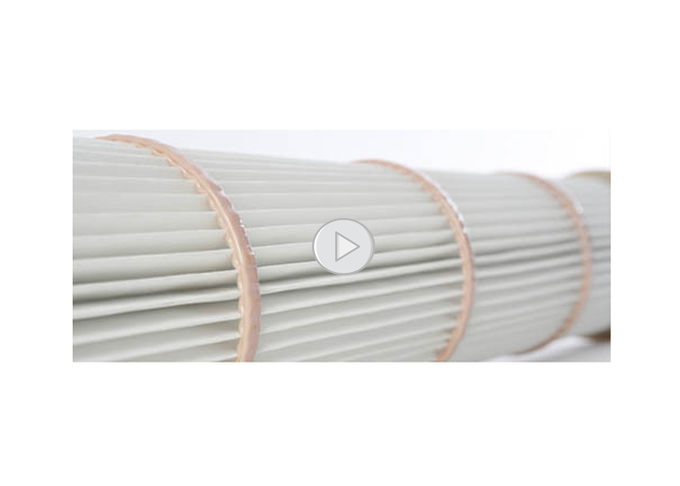

PU Cement Cartridge Filter Top installation baghouse cement pleated air filter Cylinder long pluse jet filter cartridge show:

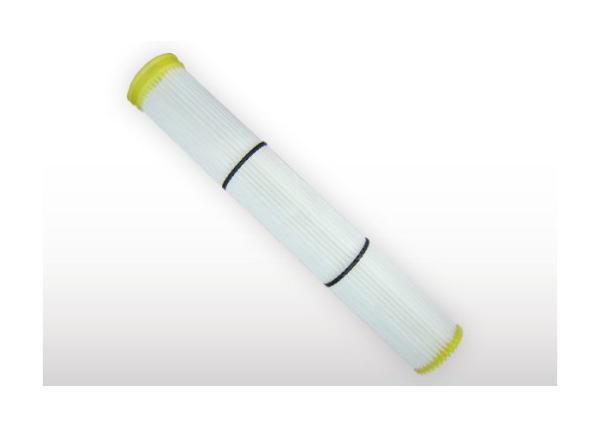

Dust filter cartridge
https://www.youtube.com/watch?v=aUaBDyIUt10
https://youtu.be/IV795B_37vU
